Buried Scraper Conveyor Device
The buried scraper conveyor device is divided into two types: Z-type scraper conveyor and horizontal scraper conveyor. Designed and manufactured based on the complete mapping of the scraper imported by the Japanese company Tsubaki, it uses two guide chains installed inside a closed shell to transport objects horizontally or vertically. It can transport not only ordinary powders, sludge and granular bodies, but also objects that are not easy to transport and objects with strong adhesion. Materials used: SUS304 stainless steel shell and scraper, 2Cr13 high-strength chain, HRC=45±5.
Product Attachments:
Keywords: Buried Scraper Conveyor Device
- Description
- Schematic Diagram
- Parameter
- Result
-
Equipment Introduction:

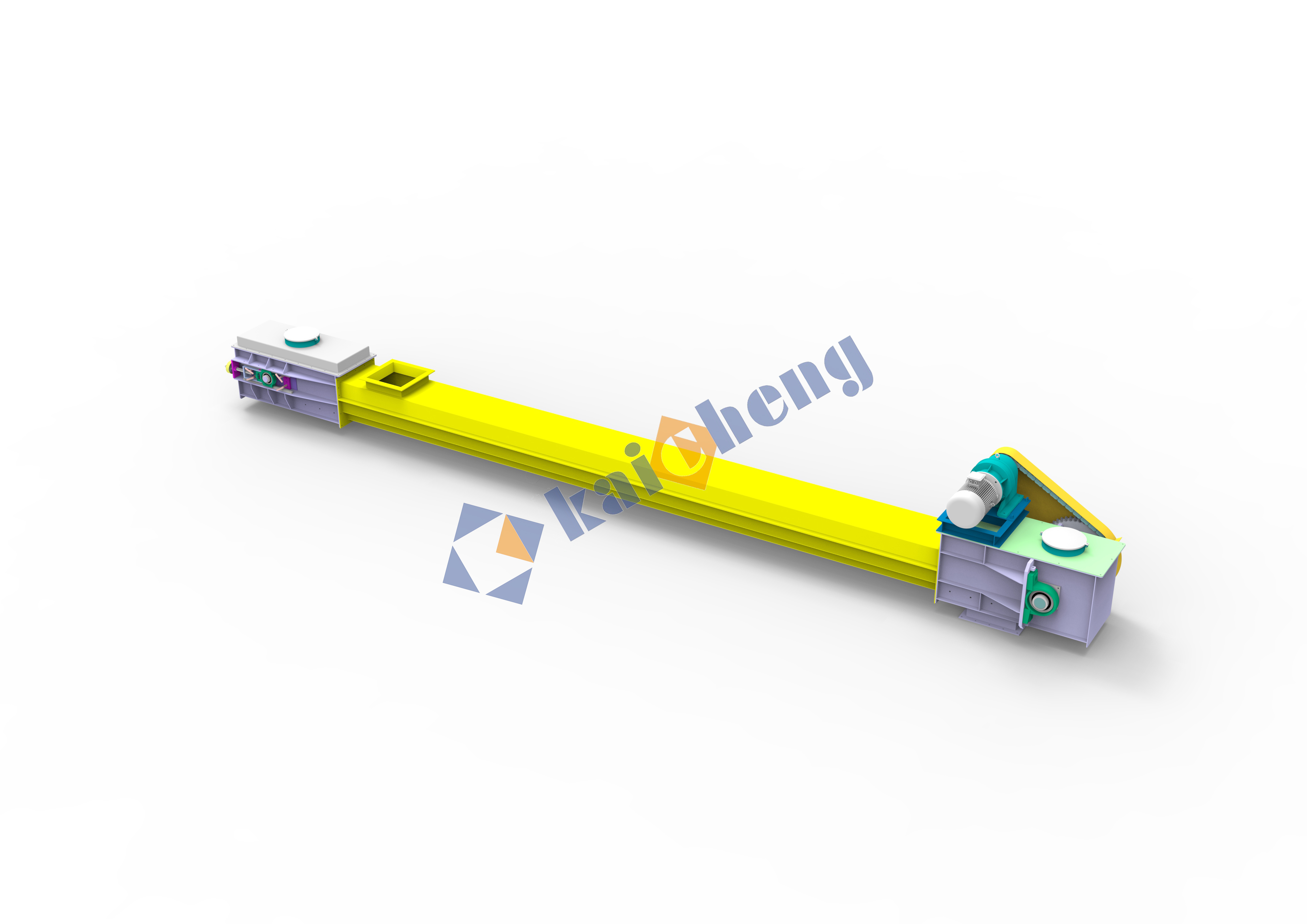

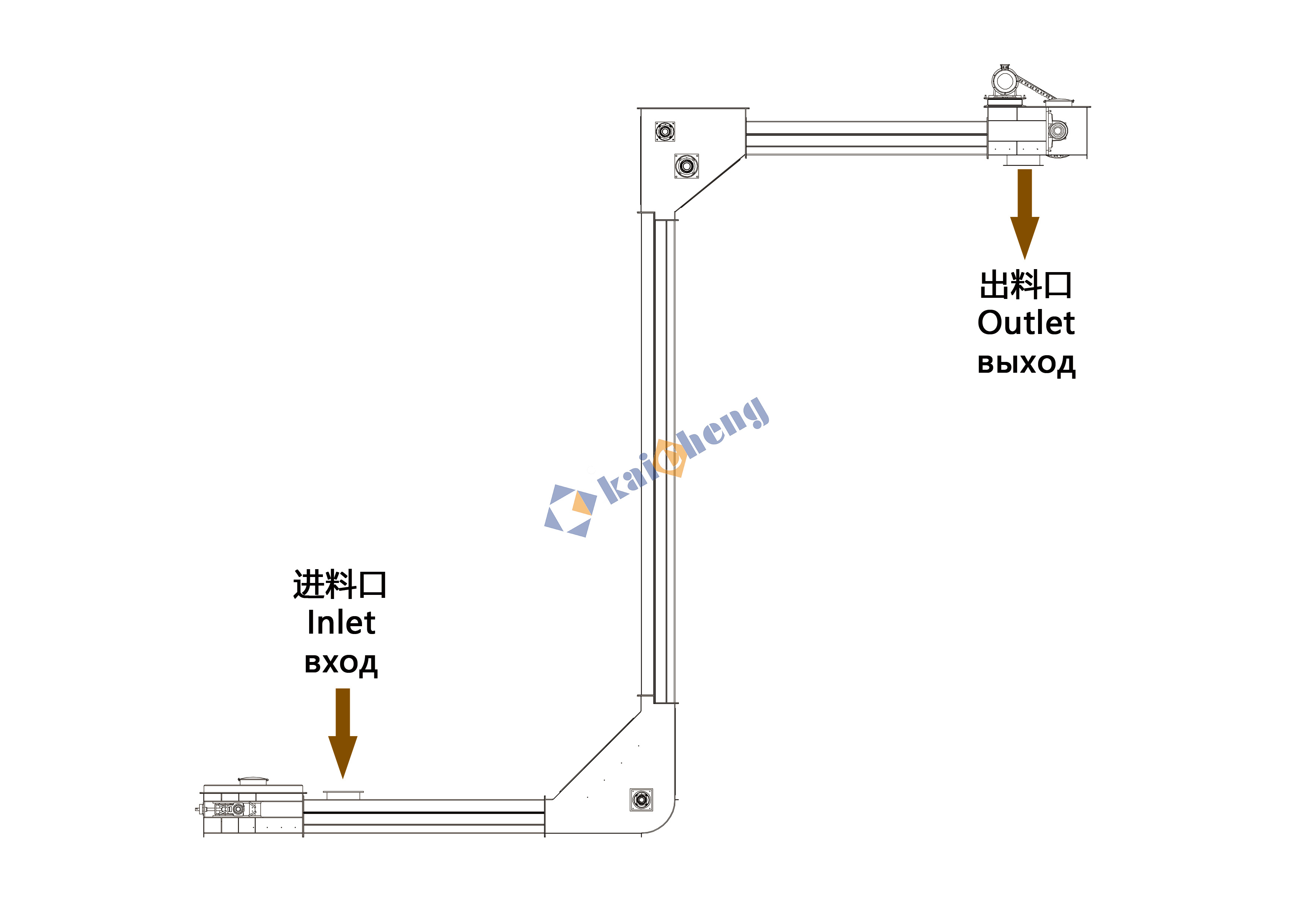

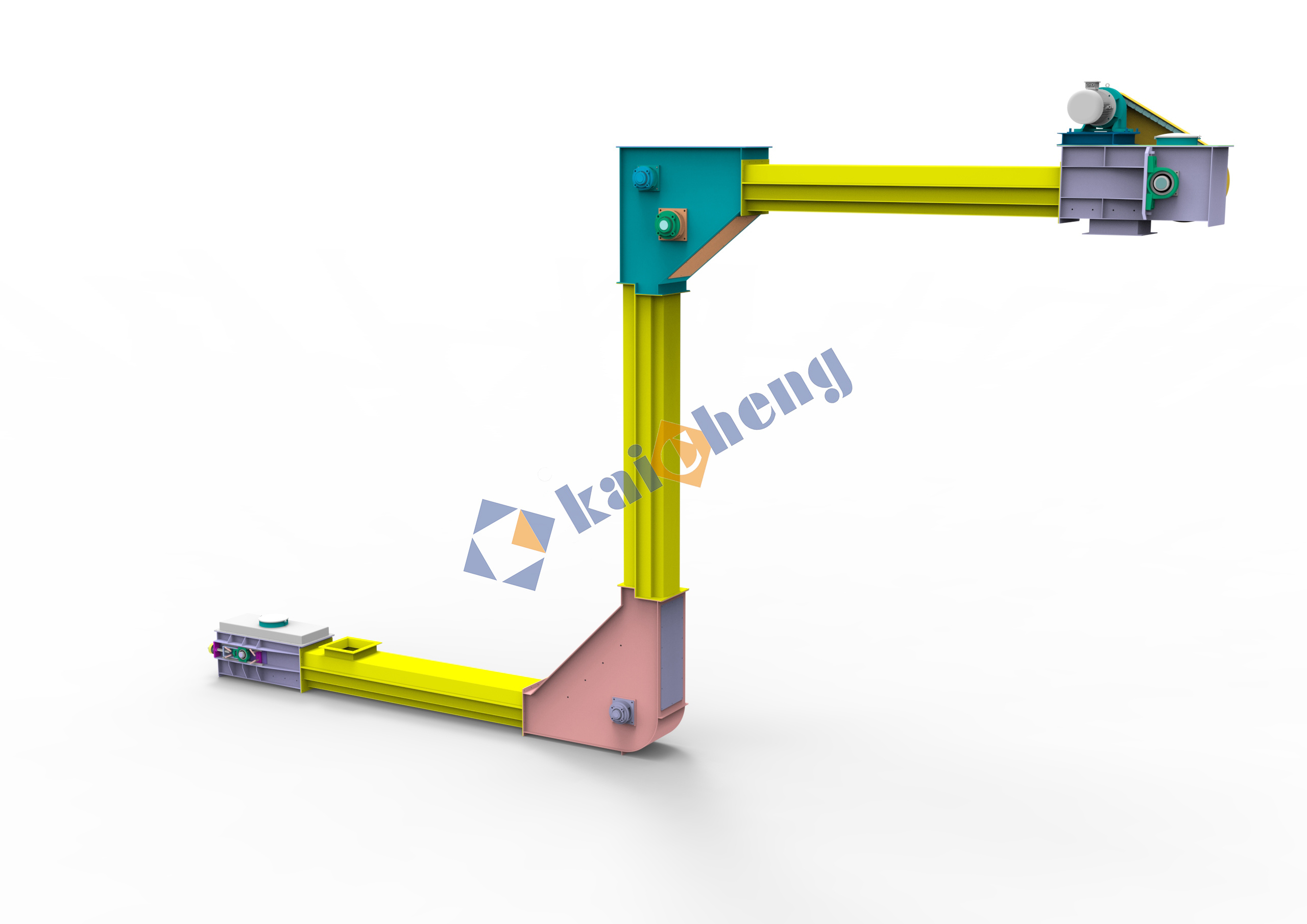

The buried scraper conveyor device is divided into two types: Z-type scraper conveyor and horizontal scraper conveyor.
Designed and manufactured based on the complete mapping of the scraper imported by the Japanese company Tsubaki, it uses two guide chains installed inside a closed shell to transport objects horizontally or vertically.It can transport not only ordinary powders, sludge and granular bodies, but also objects that are not easy to transport and objects with strong adhesion.
Materials used: SUS304 stainless steel shell and scraper, 2Cr13 high-strength chain, HRC=45±5.
Equipment Characteristics:
- The height and length of the scraper can be adjusted according to the location of the on-site equipment.
- There is a 5mm gap between the scraper and the shell, and the shell can be used for a long time.
- Dust proof and waterproof structure, without dust leakage.
- The position of the feeding and discharging ports is free, and maintenance is convenient.
Test Run Video for Z-type Scraper Locomotive Room：
-
-
Model Number Slot Width Conveying Capacity KC-ZGBJ-330
330mm
2.5-5m³/h
KC-ZGBJ-500
500mm
5-10m³/h
KC-ZGBJ-600
600mm
10-15m³/h
KC-ZGBJ-800
800mm
15-20m³/h
-
Conveying Effect of Scraper:
