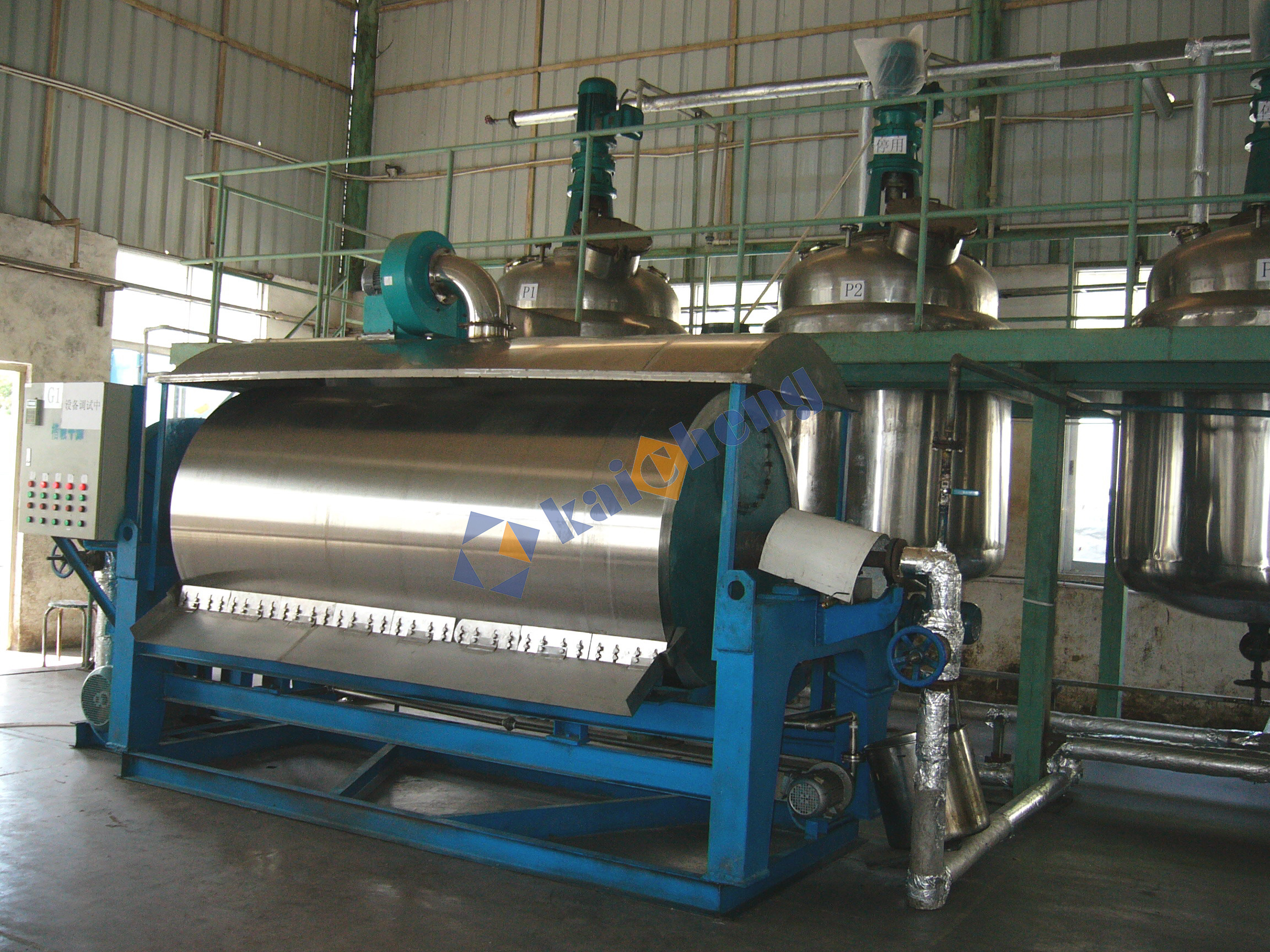

Protex International Zhaoqing Chemical Plant Project Site
Drum Cooling Crystallization Slicer
In a cooling forming process, the molten liquid of the low melting point materials in the material tray contacts the surface of the cooling roller, forming a layer of material film on the surface of the roller. The inner part of the roler uses spray to strengthen cooling and heat transfer and reduce the materia temperature. The material film is cooled and solidified, and the formed material film is scraped off to become a sheet product. This equipment is suitable for one-step forming of cooling flakes of low melting point materials.
Product Attachments:
Keywords: Drum Cooling Crystallization Slicer
Category:
- Description

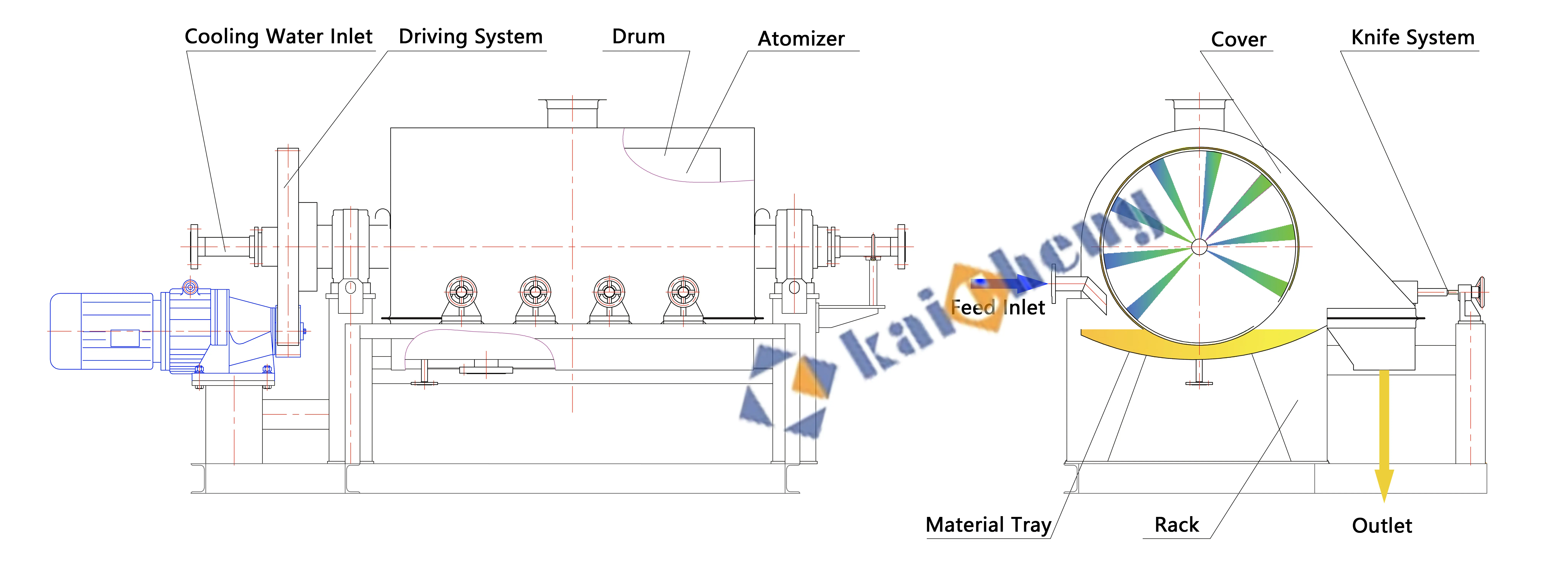

- Schematic Diagram
- Parameter
- Result
-
Working Principle：
This equipment is a cooling forming process. The low melting point materials in the material tray contact with the cooling roller, forming a film on the surface of the roller. The inner part of the roller is cooled by spray coolant, and the cooling is conducted to the roller to cool the film, solidify and form. The formed film is scraped off by the scraper to form a sheet product.
The equipment is suitable for one-step forming of cooling crystallization slices of low-melting materials.Equipment Characteristics:
- Achievements in scientific and technological research on major equipment made in China
- Equipped with side scrapers to avoid material accumulation on the side of the drum
- Compact structure and small footprint
- High accuracy of the roller, using multiple sets of scrapers, with adjustable speed
- Semi-tube jacketed tray, safe and reliable
Adapt to Materials:
- Polymer products: polyethylene oligomers, petroleum resins, oxidized polyethylene, etc.
- Organic chemical products: soft film, phthalic anhydride, maleic anhydride, naphthalene, p-phenylene glycol, higher fatty alcohol, bisphenol A, sodium acetate, glyceride, etc.
- Inorganic chemical products: calcium chloride, sodium hydrosulfide, sodium sulfide, caustic soda, chloroacetic acid, guanidine nitrate

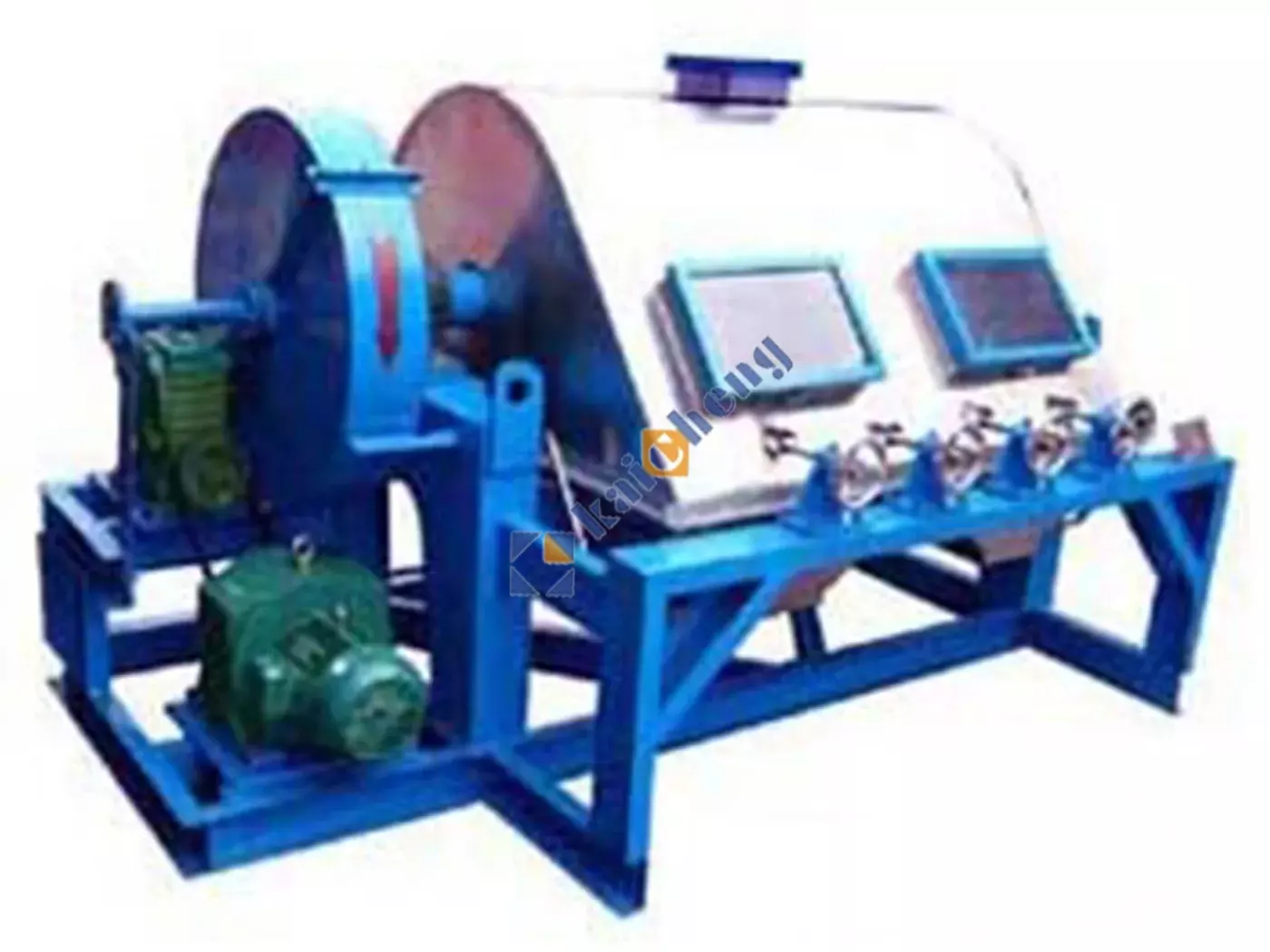

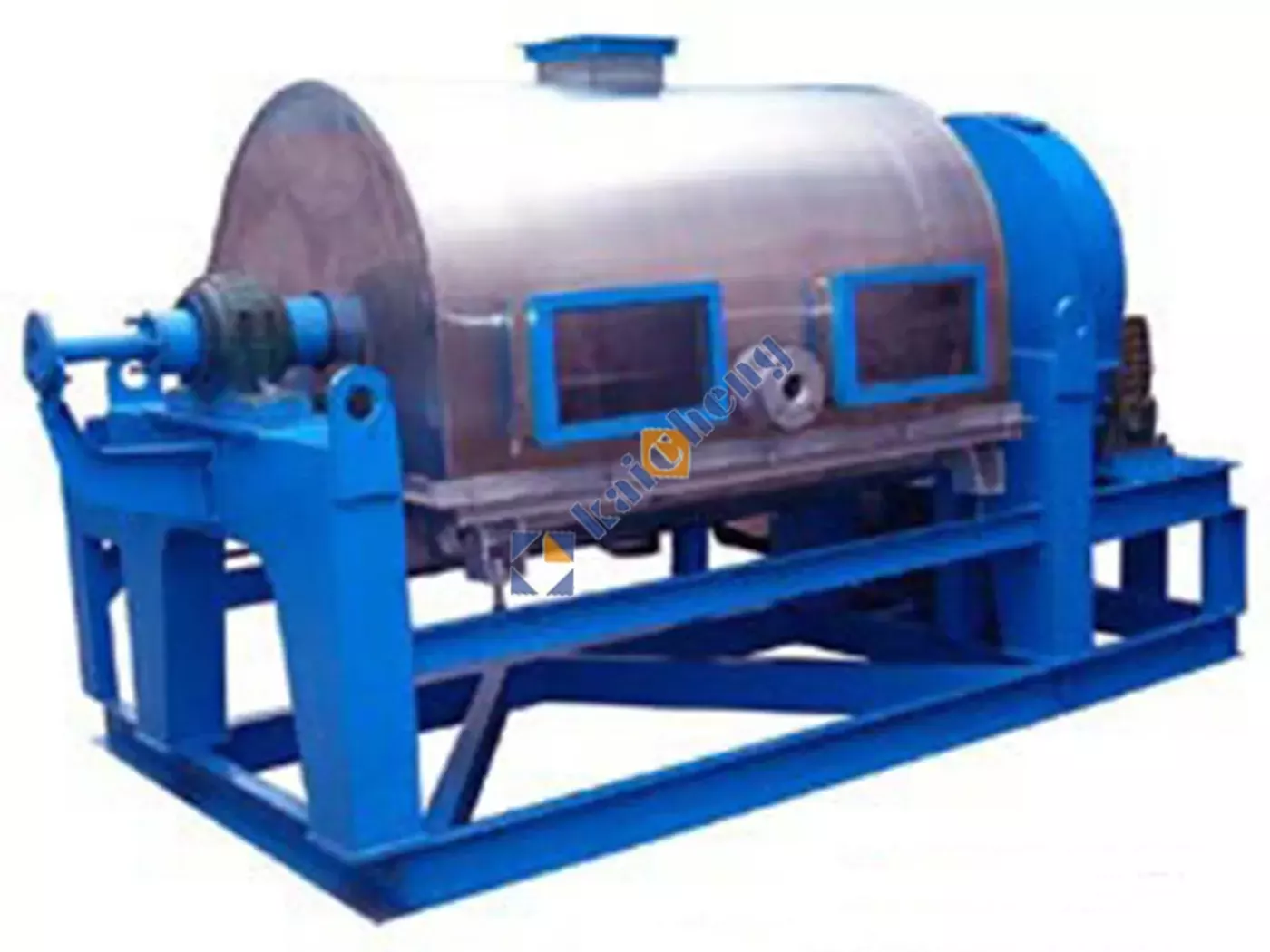

Equipment Display:

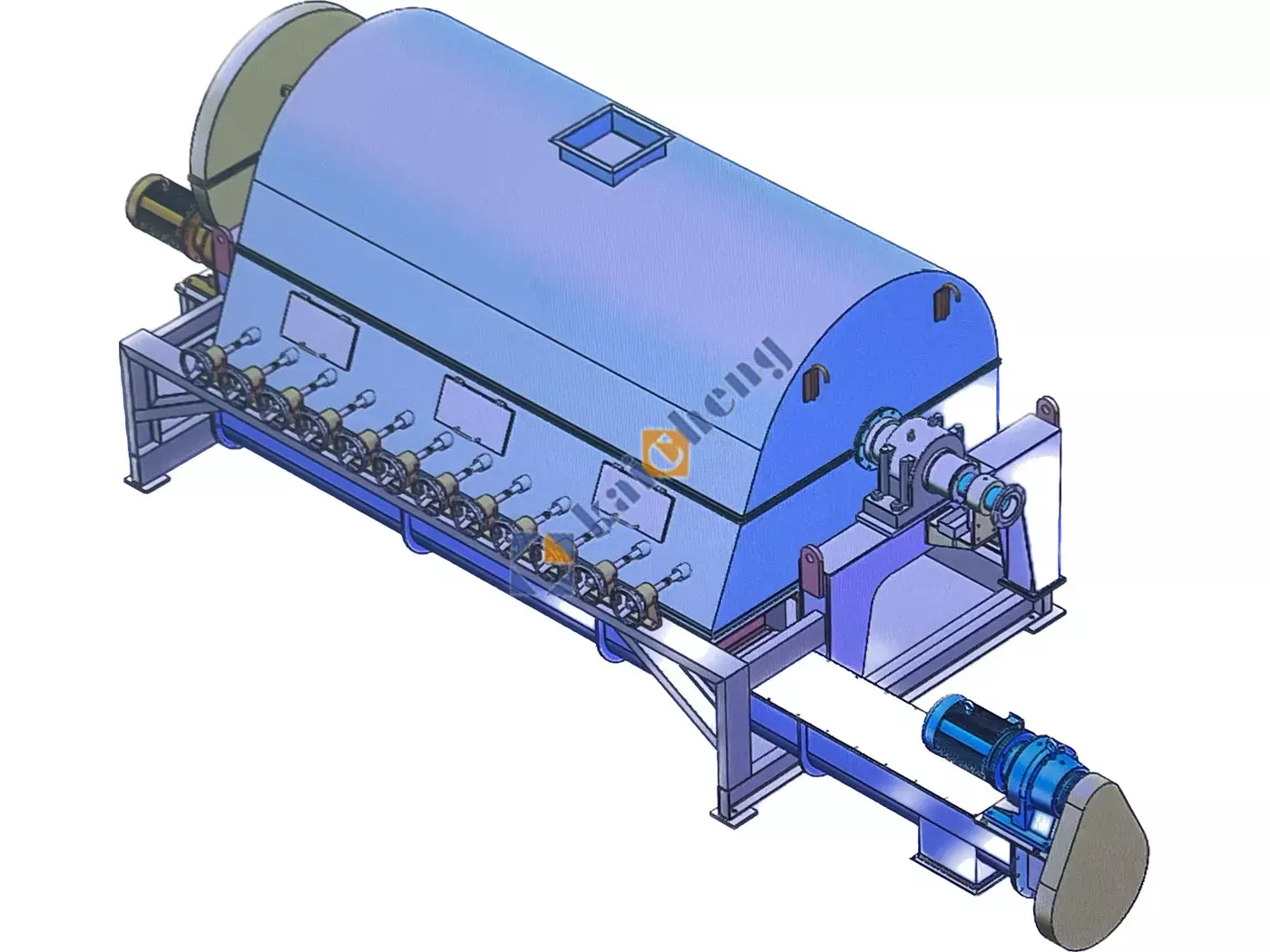

3D Model Display：

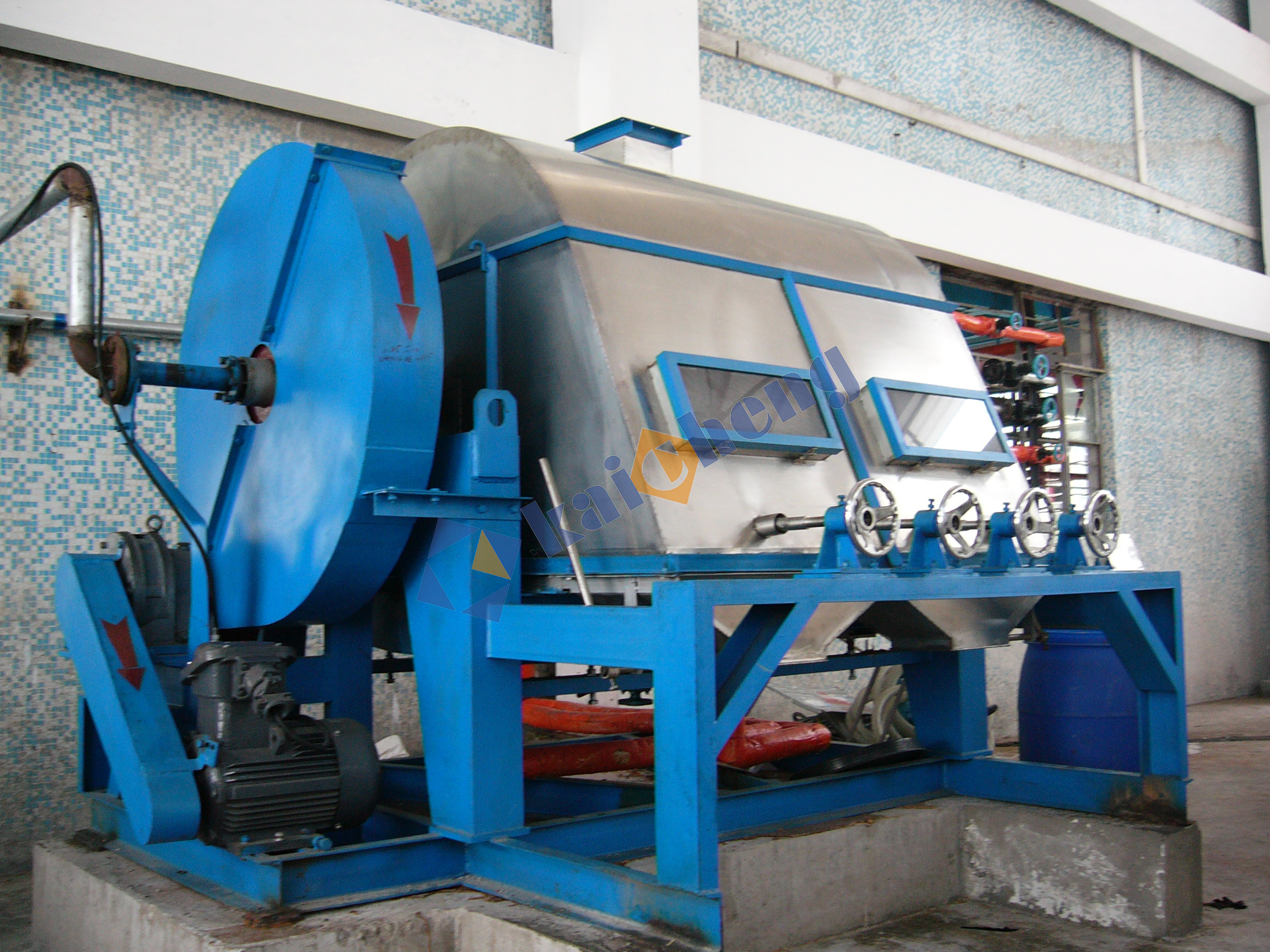

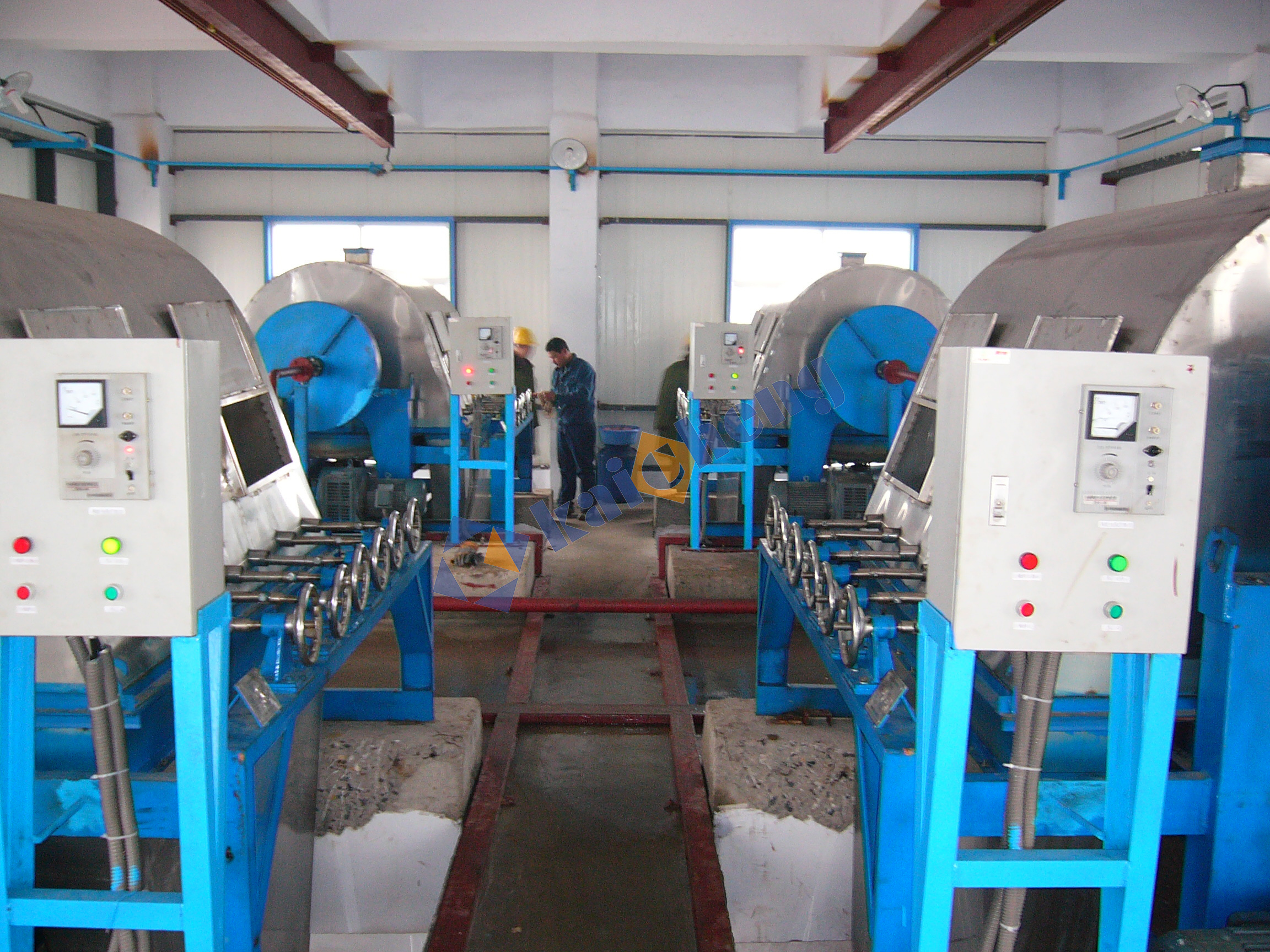

Project Case:
Shenzhen Zhenhua New Material Technology Co., Ltd. Project
Shandong Bluestar Dongda Chemical Co. Ltd Project Site
Zhonghao Group Guizhou Chemical Plant Project Site
-
-
Equipment Model
Drum Specification
GT-1
600X600mm
GT-3
800X1200mm
GT-4.5
1200X1200mm
GT-7.5
1400X1800mm
GT-9
1600X1800mm
GT-12
1600X2400mm
GT-18
1600X3600mm
GT-22
2300X3000mm
-
User Company Name
Material Name
Commissioning Date
Xinjiang Terada Environmental Protection Technology Co., Ltd.
Na₂S
1992
Alxa Left Banner Longxingyuan Chemical Co., Ltd.
Peregal
1994
Beijing Yanshan Petrol-Chemical Industry Co.,Ltd.
LLDPE
1994
Daqing Petgochemical Complex Office
LLDPE
1996
Xuanhua Iron & Steel Group Corp. Ltd.
Naphthalene
1996
Huabanb Resin Co.,Ltd.Quanzhou Fujian
Maleic Anhydride Resin
2005
Shenzhen Zhenhua New Material Technology Co., Ltd.
Viscous Paste
2005
Chongqing Chuanqing Chemical Plant
Refined Naphthalene
2006
Protex International Zhaoqing Chemical Plant
Dyeing Auxiliary Agent - Soft Film
2006
Maoming Zhonghe Petrochemical Co.,Ltd.
Asphalt Additive
2007
Zhonghao Group Guizhou Chemical Plant
Sulfur
2008
Shandong Bluestar Dongda Chemical Co. Ltd
CaCl2
2008
Rich Able Technology Limited
Plastic Additives
2012
Shenzhen Cargill Food Co., Ltd.
Hydrogenated Oil
2013
